Configuring SSRS Report Subscription using Gmail as the SMTP Server...

Recently I was trying to configure SSRS Report subscription. I checked some links in the MSDN and by following those steps I was unable to configure it. The reason was I used the SMTP server as smtp.gmail.com since we are not having a local smtp server. To use the smtp.gmail.com as the smtp server we need to follow some additional steps other than the steps mentioned here.

The first step is we need to configure a Virtual SMTP server.
First make sure that the SMTP Feature is installed on your server, if not installed it.
Then use IIS Manager to configure the virtual SMTP server. I am using Windows Server 2008 and it has both the IIS 6 and IIS 7.
To configure virtual SMTP server we have to use IIS 6.
Open the IIS 6.0 Manager and you will get a screen as below.


In that if the SMTP Virtual Server is not started, then start it. Then right click on it and select Properties.
You will get a screen as given below.


In the General tab select the IP Address value and unmarked the Limit Number of Connections to field.
Then go to the Access tab and click on the Relay button at the bottom. Then select All except the list below and click OK.
Then go to the Delivery tab you will get a screen as below.

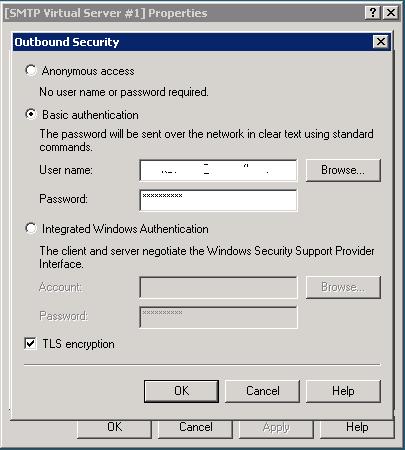

Click on the Outbound Security... button. In that select Basic Authentication and provide the gmail user name and the password as shown below. Also select the TLS encryption as well.


Click OK and then click on the Outbound connections... button.
In that change the TCP port value to 587 and click OK.

Then click on the Advanced button in the Delivery tab. Then provide the Smart host value as smtp.gmail.com and also check whether the Fully-qualified domain name is correct.
Then click OK on both the Advanced Delivery window and the Properties windows. That is it and now you completed configuring virtual SMTP server.

The next step is to use that virtual SMTP server to configure Reporting Services.
To configure it run the Reporting Service Configuration Manager. Connect to the Reporting Service instance and select Email Settings. You will get a screen as shown below.



In that provide the Sender Address which is used to send mails. For the SMTP Server value, provide the IP Address given for the virtual SMTP Server. Click Apply.

But still it is not completed. You have to modify the rsreportserver.config file which can be found at  C:\Program Files\Microsoft SQL Server\MSRS10_50.MSSQLSERVER\Reporting Services\ReportServer.

The rsreportserver.config contains a property as SendUsing which specify whether a local SMTP Server (SendUsing =1) is used or a Remote SMTP server (SendUsing =2) is used to send mails.
Since we are using virtual SMTP server we need to set the value as 1.

The other property we need to set is SMTPServerPickupDirectory value which specifies the local pickup directory. We need to set that value in the rsreportserver.config file as well and for my example it is as C:\inetpub\mailroot\Pickup. Then save the rsreportserver.config file.

You will complete the configuring Reporting Service E-mail Delivery after saving the rsreportserver.config file. That is it.

Now go to the Report Server and click the down arrow of the relevant report and select Manage. In that select Subscriptions and create a New Subscription. In that page select the report delivery option as E-mail and provide other required values.

After that you will get e-mails according to the given schedule.
